Spaceview Hands

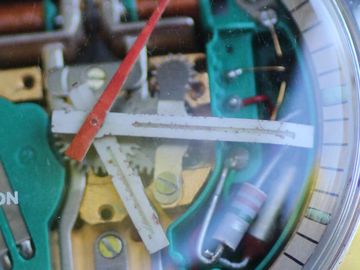

These were often used on early US 14K and 18K Spaceview models.  Also used for a couple of the stainless models. Correct hands for a "dotted" crystal.

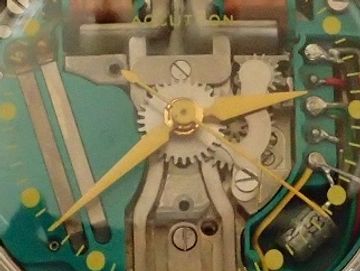

These were sometimes used on early US 14K and 18K Spaceview models.  Not as common as the Lance although correct hands for a "dotted" crystal.

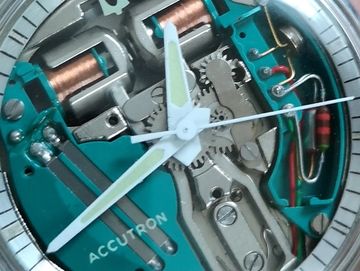

These were only used on the US reflector ring models and should only be found on case # 2528, 2528A, 2531 and 3396.

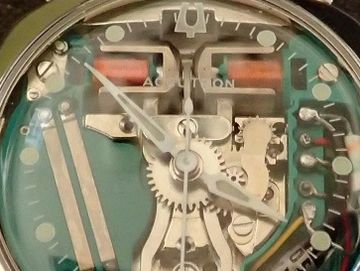

These were only used on the US made Spaceview "B", stainless steel case 2362. Correct hands for a yellow "dotted" crystal.

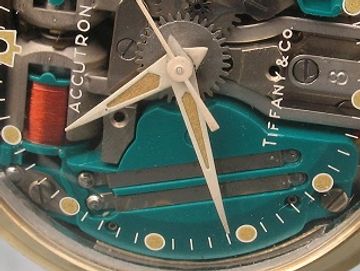

These were used on dialed models but were also used on Swiss Spaceview models. Typically, case 316-1, to match the stainless steel case. Pictured above installed on a Swiss Japanese import.

 These were used on dialed models but were also used on Swiss spaceview models Typically, case 316-7 and 319-1, to match the gold capped case.

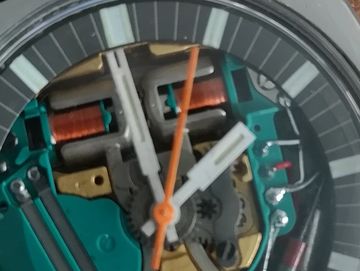

 These were mainly  used on Swiss made wide reflector ring models. They were also used on US versions of the Spaceview "T" and "U".

 These were only used on later US reflector ring models, including the US version of the 1975 "Anniversary" spaceview

Several sizes were available for US spaceviews. in 29.0mm, 29.9mm and 30.55mm sizes. Mostly for the 14k and 18k cases.

 Correct 1210-3SY Crystal for the 2362 yellow dot spaceview "B" only

This is a 1271-AYS 31.1mm crystal for some US case styles with the reflector ring. Primarily for case style 2531. There is also a version of this crystal with the tuning fork at 12:00

This is Swiss style printed crystal for the early 316 style (and others) Swiss cases. 319-1AYS 33.6mm

This is Swiss style printed crystal for the 891 style Swiss cases. 891-1AYS 33.6mm

This is Swiss style printed crystal for the spaceview "T" and "U" .(case #770). This one is a 770AWS 34.1mm. The option for gold plated cases is 770AYS

This is Swiss style printed crystal for the spaceview  7396 and 7323 cases. There are two versions, 7323FAW for stainless cases and 7323FAY for gold plated cases.

This is a Swiss style printed Spaceview Crystal for the  454-2 case. There are no photos available for an original watch. All examples I have seen using this crystal have been conversions.

This is the flat mineral crystal for the Swiss Anniversary model 7581. The crystal code is  7581MW/SL. (photo courtesy of Gaetano Fortunato)

This is the flat mineral crystal for the Swiss 7387 and 7387-1. Extremely hard to find. (photo courtesy of Gaetano Fortunato)
